How to Reduce Noise with Acoustic Insulation: A Forensic Guide

In the modern built environment, the luxury of silence has transitioned from a passive byproduct of heavy masonry to a meticulously engineered performance requirement. How to Reduce Noise with Acoustic Insulation. As residential and commercial densities increase, the intrusion of environmental noise—ranging from the low-frequency thrum of HVAC systems to the high-frequency transients of urban life—presents a significant challenge to the psychological and physiological well-being of occupants. The discipline of acoustic isolation, however, is frequently misunderstood as a mere extension of thermal insulation. In reality, while thermal management focuses on disrupting the movement of kinetic energy via molecules, acoustics requires the management of vibration through elastic and inelastic mediums.

The fundamental disconnect in contemporary construction lies in the reliance on “bulk-fill” materials to solve complex mechanical wave problems. Simply stuffing a wall with fiberglass batts may provide a marginal increase in sound absorption, but it does little to address the structural flanking paths that allow sound to bypass the wall entirely. To achieve true isolation, one must engage with the four pillars of acoustic science: mass, decoupling, absorption, and damping. Each pillar addresses a specific failure mode in the building envelope, and a deficiency in any one can render the entire system ineffective.

This study provides a definitive framework for navigating the nuances of noise control. We move beyond surface-level material comparisons to analyze the systemic drivers of sound transmission—from the role of “coincidence frequency” in glazing to the impact of “triple-leaf effects” in staggered stud walls. By deconstructing the variables of Sound Transmission Class (STC) and Outdoor-Indoor Transmission Class (OITC), we establish a methodology for the architectural stewardship of the acoustic environment. This is an examination of how a structure, when deployed with mechanical precision, serves as a sanctuary against the entropic noise of the external world.

Understanding “how to reduce noise with acoustic insulation”

In the professional architectural and acoustic engineering spheres, the mandate to learn how to reduce noise with acoustic insulation is regarded as an exercise in “Path-Source-Receiver” optimization. It is a multi-perspective challenge that requires the specifier to reconcile the physics of sound waves with the structural constraints of the building. A common misunderstanding among observers is that “soundproofing” is a binary state. In reality, acoustics is a logarithmic scale; reducing sound by 10 decibels (dB) is perceived by the human ear as a 50% reduction in volume, but achieving that next 10 dB reduction often requires a quadruple increase in material complexity or mass.

Oversimplification risks are highest when the “acoustic insulation” is treated as a singular product. Effectively determining how to reduce noise with acoustic insulation for a specific project requires a calculation of “Total Assembly Decoupling.” This involves identifying the “flanking paths”—the invisible gaps, electrical boxes, and shared floor joists—that act as acoustic bridges. If a wall is built to an STC 60 rating but has a 1-inch gap under the door, the effective rating of the entire assembly can plummet to STC 20. The insulation is not the solution; the assembly is.

Furthermore, a sophisticated approach must distinguish between “Sound Absorption” and “Sound Blocking.” Soft, porous materials like open-cell foam or mineral wool are excellent at absorbing echoes within a room (reducing NRC, or Noise Reduction Coefficient), but they are virtually useless at blocking sound from passing through a wall. Blocking requires density and airtightness. To master this category is to move from “Soft-Fill” thinking to “Structural Decoupling.” The highest-performing options are those that combine a dense medium to stop air-borne sound with a mechanical break to stop structure-borne vibration.

Systemic Evolution: From Lathe and Plaster to Viscoelastic Damping

The history of acoustic management in North American construction is a transition from accidental mass to engineered lightness. In the early 20th century, homes were built with heavy lathe-and-plaster walls. The sheer mass of the plaster provided a natural barrier to sound. The First Age (Pre-1950s) was defined by this “Mass-Law” dominance; if you wanted a quieter room, you built a thicker, heavier wall.

The Second Age (1960–2000) saw the rise of lightweight gypsum drywall and fiberglass insulation. While these materials were faster to install, they lacked the mass of plaster, leading to the “paper-thin wall” era of apartment living. This period was defined by the realization that “absorption” alone could not compensate for a lack of mass.

We are currently in the Third Age: The Age of the “Mechanical Break.” This era is defined by the use of resilient channels, sound-damping compounds (viscoelastic glues), and high-density mineral wool. Today, we achieve STC ratings higher than old plaster walls using assemblies that are half the weight. We have moved from houses that relied on “Sheer Bulk” to houses that rely on “Vaporous Decoupling,” where layers of the wall are intentionally disconnected to prevent the transmission of vibrational energy.

Conceptual Frameworks and Mental Models

To evaluate acoustic systems with editorial and technical rigor, professionals utilize specific mental models:

• The “Acoustic Leak” Model: This posits that sound behaves like water. A tiny hole in a bucket will eventually empty it; a tiny air gap in a wall will “empty” the acoustic rating. This model prioritizes airtightness (caulking and gaskets) over bulk insulation.

• The “Mass-Spring-Mass” Framework: This treats a wall as two heavy plates (drywall) separated by a spring (the air and insulation). To stop sound, you either make the plates heavier or make the spring “softer” (by decoupling the studs).

• The “Coincidence Effect” Matrix: This explains why some sounds pass through walls even when they are thick. Every material has a “weak spot” frequency where it vibrates in perfect sympathy with the sound wave. Professionals use “constrained layer damping” to shift this weakness outside the range of human hearing.

• The “Flanking Path” Logic: This recognizes that sound doesn’t just go through a wall; it goes over it (through the attic), under it (through the floor), and around it (through the ductwork).

Primary Material Categories and Performance Trade-offs

Achieving a superlative acoustic environment requires a tiered application of materials, each serving a specific mechanical function.

Comparative Taxonomy of Acoustic Solutions

Category	Primary Function	Ideal Use Case	Trade-off

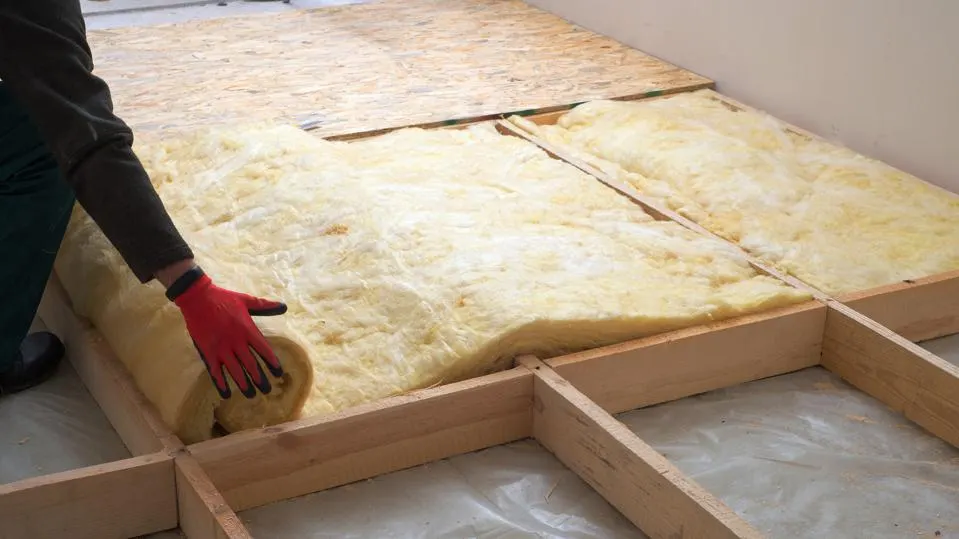

Mineral Wool (Stone Wool)	Absorption	Cavity-fill for mid-high freq	Heavy; requires PPE to install
Mass Loaded Vinyl (MLV)	Blocking (Mass)	Wrapping pipes/ducts	High cost per square foot
Resilient Channels	Decoupling	Ceiling/Wall disconnect	High failure rate if “short-circuited”
Acoustic Sealant	Airtightness	Every gap/penetration	Labor intensive
Damping Compounds	Vibration Decay	Between drywall layers	Requires 48h cure time
Open-Cell Foam	NRC (Absorption)	Echo control in studios	Zero “blocking” value
Sound-Rated Glazing	Transparent Barrier	Urban windows/doors	Extremely high cost

Realistic Decision Logic

The decision to utilize a specific category is often a function of “Frequency Profile.” If the noise source is a neighbor’s home theater (low-frequency bass), the logic favors Mass and Decoupling. If the source is a distant highway or conversation (mid-high frequency), the logic favors Absorption and Airtightness. A common forensic error is using light foam to stop a subwoofer; the long waves of low-frequency sound simply pass through the foam as if it weren’t there.

Detailed Real-World Scenarios and Decision Logic How to Reduce Noise with Acoustic Insulation

The Multi-Family Floor/Ceiling Assembly

• The Challenge: “Impact Noise” (footfalls) from the unit above.

• The Strategy: A floating floor with an acoustic underlayment, mineral wool in the joist cavity, and a decoupled ceiling using resilient clips.

• The Logic: You cannot “insulate away” footfall noise from below. You must break the mechanical connection (the joist) so the vibration cannot travel from the floorboards to the ceiling drywall.

The Home Office (Remote Work)

• The Challenge: Blocking the sound of a television or kitchen activity in the adjacent room.

• The Strategy: “Green Glue” damping between two layers of drywall and mineral wool in the studs.

• The Logic: Doubling the drywall adds mass; the damping compound converts the vibration between those layers into heat. This “Constrained Layer Damping” is more effective than a wall twice as thick.

The Urban Bedroom (Exterior Noise)

• The Challenge: Sirens and traffic noise penetrating through the window and exterior wall.

• The Strategy: High-OITC rated windows and “Dense-Pack” cellulose or mineral wool in the exterior walls.

• The Logic: Exterior noise is often “Airborne.” The focus must be on the highest possible airtightness. A window with a poor seal is a massive acoustic failure, regardless of the glass thickness.

Planning, Cost Architecture, and Resource Dynamics

The economic profile of acoustics is defined by the “Diminishing Returns” curve. Moving a wall from STC 35 (standard) to STC 45 is relatively inexpensive. Moving from STC 55 to STC 65 often requires a structural redesign.

Range-Based Resource Allocation (Per 500 Sq. Ft. Wall)

Component	Standard (STC 35)	Enhanced (STC 48)	Forensic (STC 60+)
Insulation Material	$300 (Fiberglass)	$600 (Mineral Wool)	$1,200 (HD Wool + MLV)
Drywall/Damping	$400 (Single 1/2″)	$900 (Double + Glue)	$2,500 (Triple + Damping)
Airtightness/Sealants	$50	$300 (Putty Pads)	$800 (Acoustic Gaskets)
Decoupling Hardware	$0	$400 (Resilient Ch.)	$1,500 (Isolation Clips)
Total (Est.)	$750	$2,200	$6,000+

The Opportunity Cost: The most expensive mistake is the “Half-Measure.” Spending $2,000 on high-end insulation but failing to use acoustic sealant around the electrical outlets will result in a wall that performs almost identically to a standard wall. In acoustics, you either do it completely, or you waste your capital.

Tools, Strategies, and Support Systems

Executing a high-performance acoustic vision requires a move from “Carpentry” to “Mechanical Isolation”:

1. Acoustic Putty Pads: Applied to the back of electrical boxes to prevent them from becoming “sound ports.”

2. Backer Rod and Acoustic Caulk: Essential for every joint where the wall meets the floor or ceiling.

3. Automatic Door Bottoms: Mechanical seals that drop down when a door closes to seal the “threshold gap.”

4. QuietRock/Sound-Damped Drywall: Factory-laminated drywall that saves labor by including the damping layer in the board.

5. Decoupled Studs (Staggered or Double): Building two separate rows of studs so they never touch, effectively creating two separate walls.

6. Z-Girting Decouplers: For exterior cladding, ensuring the siding doesn’t bridge noise into the frame.

7. In-Duct Silencers: For HVAC systems, preventing the “speaking tube” effect between rooms.

The Risk Landscape: Failure Modes and Compounding Hazards

Acoustics is a “Precision Discipline” where a single screw can destroy the system.

• “Short-Circuiting”: The most common failure in resilient channel installations. If a drywall screw is too long and penetrates through the channel into the stud, it creates a “bridge” that allows all vibration to pass through, rendering the $1,000 system useless.

• “The Triple-Leaf Effect”: Adding a third layer of drywall with an air gap in the middle (e.g., insulating a wall that already has drywall on both sides) can actually increase low-frequency noise transmission by creating a resonance chamber.

• “Latent Air Leaks”: Recessed “can” lights are the primary failure point in ceiling acoustics. They are essentially holes in the acoustic blanket.

• “Over-Damping”: While rare, making a room too “dead” (absorbing all high frequencies) can create an unnatural, oppressive atmosphere that causes occupant discomfort.

Governance, Maintenance, and Long-Term Adaptation

An acoustic envelope is a “Static System,” but its seals are perishable.

• The “Sealant Audit”: Acoustic caulk remains flexible for decades, but building settling can cause cracks. Every 10 years, the baseboard and crown molding areas should be inspected for air leaks.

• The “Gasket Review”: Door and window gaskets are the first components to fail. An annual check with a bright light (looking for light leaks) is the primary diagnostic for acoustic maintenance.

• Governance Checklist:

  • [ ] Check door bottom seals for mechanical engagement.

  • [ ] Inspect plumbing penetrations for “collapsed” foam or gaps.

  • [ ] Audit HVAC registers for “rattle” or whistling (signs of turbulent air noise).

Measurement, Tracking, and Evaluation

• Leading Indicators: The “Airtightness Score.” Using a smoke pen or a localized “ultrasonic leak detector” during construction to find sound paths before the walls are closed.

• Lagging Indicators: Field STC (FSTC) or Impact Insulation Class (IIC) testing using a “tapping machine” on the floor above.

• Qualitative Signals: The “Speech Privacy” test. If a person speaking at a normal volume in the next room is audible but not intelligible, you have achieved approximately STC 45. If they are completely inaudible, you are at STC 55+.

• Documentation Example: A “Submittal Log” showing that every fastener used in the resilient clips was the correct length to avoid short-circuiting.

Common Misconceptions and Oversimplifications

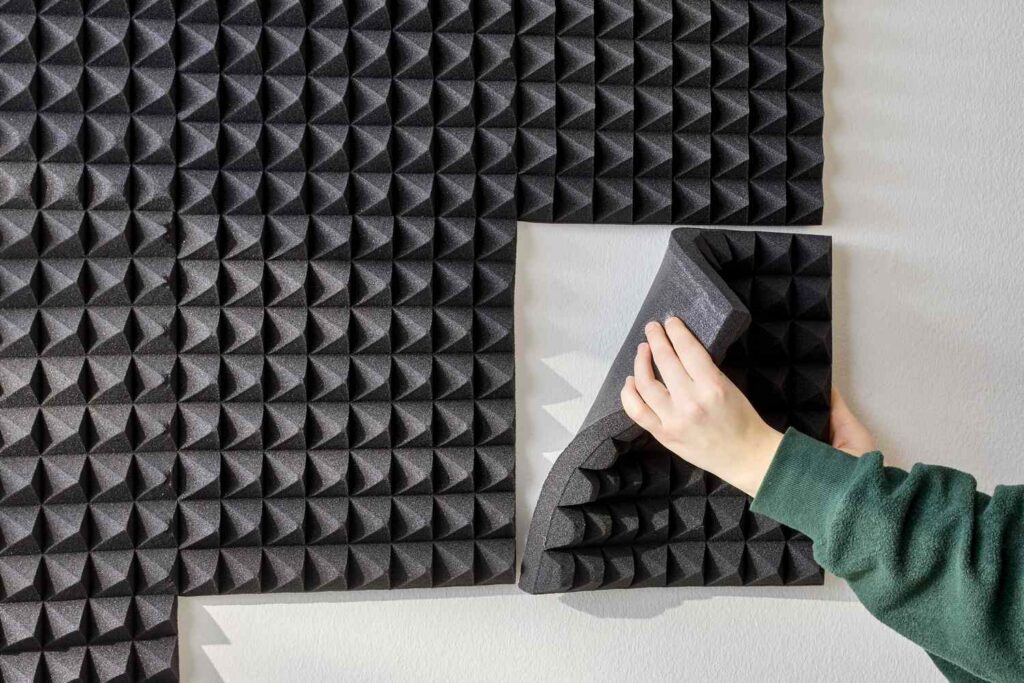

• Myth: “Egg cartons/foam panels block sound.” Correction: These only reduce echo inside the room. They have almost zero “blocking” power for sound passing through walls.

• Myth: “Fiberglass is the best for sound.” Correction: Mineral wool is superior due to its higher density and “airflow resistance,” which is the true measure of acoustic absorption.

• Myth: “I need to soundproof my walls.” Correction: Most noise in modern homes comes through the floor and ceiling. Insulating walls without addressing the joists is often a wasted effort.

• Myth: “Adding more insulation is always better.” Correction: Once the cavity is filled, adding more provides no benefit. You must add mass or decoupling to go further.

• Myth: “Triple-pane windows are the quietest.” Correction: Laminated glass (which has a plastic interlayer) is far more effective at blocking noise than simply adding a third pane of standard glass.

• Myth: “Soundproofing is expensive.” Correction: Airtightness is cheap. A $10 tube of acoustic caulk often provides more “noise reduction” than $500 of insulation.

Ethical, Practical, or Contextual Considerations

The pursuit of silence is fundamentally a “Public Health” strategy. Chronic exposure to “Low-Level Environmental Noise” (LLEN) has been clinically linked to elevated cortisol levels, cardiovascular stress, and cognitive impairment in children. Therefore, the decision of how to reduce noise with acoustic insulation is not just an aesthetic choice; it is an act of preventative health care. Furthermore, as the “Work From Home” era becomes a permanent fixture of the economy, the acoustic “Separation of Spheres” is critical for maintaining professional boundaries in domestic spaces. Designing for silence is, in effect, designing for human dignity.

Synthesis: The Future of Isolated Environments

The trajectory of the global building industry is moving toward “Active Isolation.” We are seeing the development of “Meta-Materials”—3D-printed structures that can cancel specific frequencies—and “Vacuum-Insulated Glazing” that provides total acoustic decoupling. However, the core of the discipline remains forensic. No amount of advanced material science can compensate for a lack of mechanical discipline during the installation of the “Acoustic Seal.”

To successfully manage a modern acoustic environment is to embrace the “Laws of the Leak.” It is a rejection of the “bulk-fill” mentality in favor of a precision-based approach where every screw, every gap, and every joist is treated as a potential bridge for energy. By prioritizing “Mass, Decoupling, and Airtightness,” the builder ensures that the residence remains a stable, filtered, and resilient sanctuary for the life of the asset.
