Best Spray Foam Insulation Plans: A Forensic Architectural Guide

The modern building envelope is no longer a passive barrier but a highly engineered, semi-permeable membrane designed to manage the entropic forces of the North American climate. Best Spray Foam Insulation Plans. Within this evolution, spray polyurethane foam (SPF) has transitioned from a niche industrial sealant to a foundational element of high-performance residential and commercial construction. This shift represents a fundamental move away from “bulk-fill” insulation strategies toward a model of atmospheric control. Unlike traditional batts or loose-fill materials, which rely solely on thermal resistance, spray foam integrates air sealing, vapor management, and thermal insulation into a single, monolithic application.

However, the efficacy of SPF is not found in the material alone, but in the forensic precision of its deployment. The industry is currently moving toward a “systems-based” approach, where the chemical composition of the foam—whether open-cell or closed-cell—is calibrated against the hydrothermal stresses of the specific climate zone. This complexity necessitates a departure from standard contractor “quotes” toward deeply researched, site-specific planning. To implement an effective thermal sanctuary, one must understand the interaction between exothermic reactions during installation, the aging of R-values over time, and the critical importance of the “pressure boundary” in a tightly sealed vessel.

This study provides a definitive framework for navigating the landscape of sophisticated environmental control via spray foam. We move beyond surface-level energy efficiency tropes to analyze the systemic drivers of performance—from the mitigation of thermal bridging to the role of “thermal lag” in perceived comfort. By dismantling the mechanics of chemical adhesion and off-gassing protocols, we establish a methodology for the architectural stewardship of the home. This is an examination of the residence as a high-performance vessel, engineered to provide a stable, resilient sanctuary regardless of the volatility of the external environment.

Understanding “best spray foam insulation plans”

In the professional architectural and building forensic spheres, the mandate to develop the best spray foam insulation plans is regarded as an exercise in “Atmospheric Synchronization.” It is a multi-perspective challenge that requires the specifier to reconcile the physics of the building envelope with the chemical realities of on-site manufacturing. A common misunderstanding among observers is that spray foam is a “product” one buys off a shelf. In reality, it is a chemical reaction that occurs in real-time within the walls of a home. A top-tier plan acknowledges that the installer is essentially a chemist working in a non-controlled environment, where ambient humidity and substrate temperature can dictate the difference between a lifetime bond and a catastrophic delamination.

Oversimplification risks are highest when a project focuses solely on the initial R-value. While closed-cell foam offers some of the highest R-values per inch in the industry, its efficacy is neutralized if the “Thermal Bridge”—the wood studs or steel tracks—remains unmanaged. Effectively determining the best spray foam insulation plans for a specific project requires a calculation of “Total Assembly Performance.” This involves creating a continuous air barrier that wraps the entire building. If there is a break in the foam—at a rim joist or a window header—the resulting air leak becomes a site for condensation and localized discomfort that no amount of furnace output can resolve.

Furthermore, a sophisticated approach must address the “Hygrothermal Pulse” of the home. Luxury is found in the absence of sensory intrusion—the absence of the humid “stickiness” common in coastal regions and the absence of outdoor pollutants. Achieving this level of performance requires a shift from component-based thinking to system-based thinking. The home must be treated as a single, pressurized vessel where the foam acts not just as insulation, but as a gasket. The “best” plan is one that recognizes SPF as the primary tool for achieving the radical airtightness required by Passive House standards, while simultaneously providing for the mechanical ventilation necessary to keep the occupants safe.

Systemic Evolution: From Industrial Sealants to Residential Envelopes

The history of SPF has transitioned through three distinct “Ages of Application.” The First Age (1960s-1980s) was the Age of Industrial Sealing, where foam was primarily used in cold storage and industrial roofing. During this period, the chemistry was volatile, and the blowing agents were often ozone-depleting substances.

The Second Age (1990s-2010s) was the Age of the Hybrid Envelope. SPF began to enter the residential market, often used in “flash and batt” systems where a thin layer of foam provided an air seal, followed by cheaper fiberglass to provide bulk R-value. While cost-effective, these systems often suffered from quality control issues at the interface of the two materials.

The Third Age—the one we currently occupy—is the Age of the Monolithic Envelope. This era is defined by “High-Yield” chemistry and low-GWP (Global Warming Potential) blowing agents. We have moved toward full-cavity spray applications that treat the attic and the crawlspace as “conditioned” zones. This evolution is driven by the maturation of technologies like Variable Refrigerant Flow (VRF) HVAC systems, which require the extreme airtightness that only SPF can reliably provide at scale.

Conceptual Frameworks and Mental Models of Performance

To evaluate SPF systems with editorial and technical rigor, professionals utilize specific mental models:

• The “Gasket” Model: This views the house not as a series of walls, but as a pressurized cabin. If a gasket is missing at the “top plate” where the wall meets the attic, the entire pressure boundary fails. SPF is the only material that can effectively create a seamless gasket across complex architectural geometries.

• The “Dew Point Shift” Framework: This calculates where moisture will condense within a wall. By applying SPF to the interior of a roof deck, the “cold surface” is moved to the outside of the foam, preventing warm, moist indoor air from hitting a cold surface and turning into liquid water.

• The “Thermal Lag” Concept: This treats the high-density version of SPF as a storage device for energy. While foam doesn’t have the mass of concrete, its ability to stop convective air loops significantly increases the “Effective Thermal Mass” of the building.

• The “Off-Gassing Horizon”: A mental model for safety that calculates the time required for the chemical reaction to reach 99.9% completion. A top plan prioritizes the “Re-occupancy Time” over the speed of installation.

Primary Technology Categories: Open-Cell vs. Closed-Cell Trade-offs

The American market utilizes two primary formulations of SPF, each offering a distinct set of mechanical trade-offs.

Comparative Taxonomy of SPF Solutions

Feature	Open-Cell (Half-Pound)	Closed-Cell (Two-Pound)	Strategy Logic
R-Value per Inch	~3.5 to 4.5	~6.0 to 7.0	Density dictates resistance.
Air Sealing	Excellent	Excellent	Both provide a radical air barrier.
Vapor Retarder	Vapor Permeable	Vapor Impermeable	Closed-cell acts as its own barrier.
Structural Impact	Minimal	Adds Rigidity	Closed-cell can strengthen walls.
Blowing Agent	Water-Blown	Chemical-Blown (HFO)	Open-cell is typically “greener.”
Expansion Rate	High (100:1)	Low (30:1)	Open-cell fills deep cavities easily.

Realistic Decision Logic

The choice of typology is often a function of “Moisture Risk.” In a humid Gulf Coast climate, the logic often favors Closed-Cell SPF for roof decks because it prevents humid exterior air from driving moisture into the home. Conversely, in a temperate climate with a focus on sound attenuation, Open-Cell SPF is the gold standard, as its softer, sponge-like structure absorbs acoustic energy far better than its rigid counterpart. The “best” plan reconciles these technical requirements with the specific “Drying Potential” of the wall assembly.

Detailed Real-World Scenarios and Forensic Decision Logic Best Spray Foam Insulation Plans

The Unvented Attic (Hot/Humid Southeast)

• The Challenge: Traditional vented attics in Florida often reach 140°F, forcing HVAC ducts to work in extreme heat.

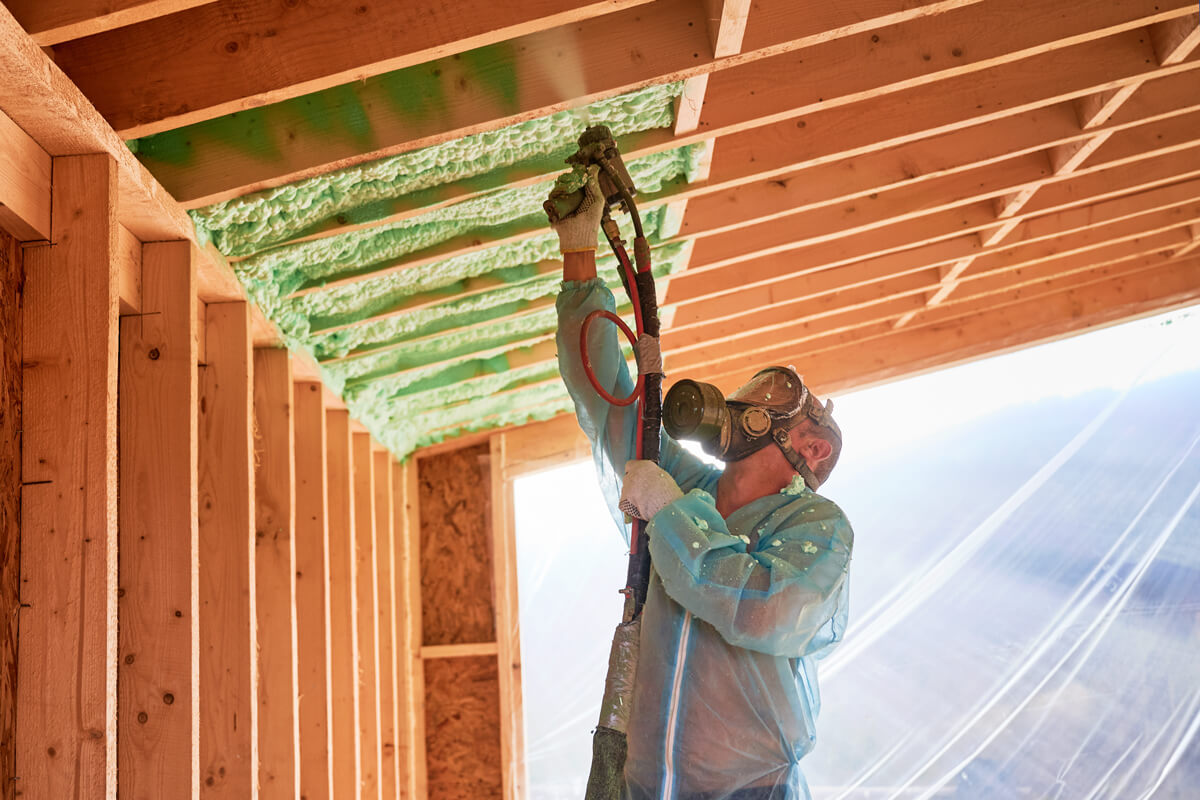

• The Strategy: Applying 5.5 inches of open-cell or 3 inches of closed-cell foam directly to the underside of the roof deck.

• The Logic: Moving the “Thermal Boundary” to the roof line brings the HVAC system into the conditioned space, typically reducing cooling costs by 30% and eliminating the risk of condensation on ductwork.

The Stone Foundation Retrofit (Northeast)

• The Challenge: Irregular 19th-century masonry walls that are impossible to insulate with rigid boards or batts.

• The Strategy: Applying 2 inches of closed-cell SPF directly to the interior masonry.

• The Logic: Closed-cell foam conforms to the irregular stone, provides a radical air seal, and—crucially—acts as a vapor barrier that prevents “bulk water” from weeping through the stone and rotting the sill plate.

The Modernist Glass Pavilion (High Wind Zone)

• The Challenge: Floor-to-ceiling glazing creates “soft” walls that can vibrate or rack during high-wind events.

• The Strategy: Using closed-cell SPF in the opaque wall sections and headers.

• The Logic: The high compressive strength of two-pound foam significantly increases the “Racking Strength” of the wall, providing an invisible layer of structural resilience.

Planning, Cost Architecture, and Resource Dynamics

The economic profile of flagship SPF projects is defined by the “Cost of Avoidance.” Generally, the premium for SPF is 2x to 3x that of traditional insulation, but this is often offset by the ability to downsize the HVAC system.

Range-Based Resource Allocation (Per 2,500 Sq. Ft. Custom Build)

Component	Standard Batt Plan	High-Performance SPF Plan	Forensic “Best” Plan
Insulation Cost	$4,000 – $6,000	$12,000 – $18,000	$22,000 – $30,000
Air Sealing Prep	$1,500	Included in SPF	Deep Detail Prep ($3,000)
HVAC Sizing	5 Tons ($15k)	3 Tons ($10k)	2 Tons VRF ($18k)
Diagnostic Testing	$0	$1,500	$3,500
Total (Est.)	$21,500	$26,500	$48,500

The Variability Factor: The “Hidden Payback” is the mitigation of future risk. The best spray foam insulation plans account for “Opportunity Cost.” If the home is not insulated correctly during construction, the cost to retrofit it later is often 10x the initial investment, as it requires the removal of drywall and mechanicals.

Tools, Strategies, and Support Systems

Executing a high-end SPF vision requires a move from “Construction” to “Chemical Laboratory” standards:

1. Blower Door Manometry: The essential diagnostic fan used after foaming to verify that the “Target ACH50” (Air Changes per Hour) has been met.

2. Infrared Thermography: Used during the application to “visualize” any voids or “ghosting” where the foam failed to adhere to the substrate.

3. Proportional Monitoring: High-tech spray rigs that track the A-to-B chemical ratio in real-time, shutting down the system if a 1% deviation occurs.

4. Moisture Meters: Used to verify that wood framing is below 19% moisture content before application; foam applied to “wet” wood will inevitably fail.

5. Exothermic Temperature Probes: Monitoring the internal heat of the foam during curing to prevent “charring” or internal combustion in deep-fill applications.

6. Hygrothermal Simulation (WUFI): Professional software used to predict 50 years of moisture movement within a foam-filled wall.

7. Zonal Mechanical Ventilation: Systems like ERVs (Energy Recovery Ventilators) that are mandatory in SPF homes to manage indoor air quality.

The Risk Landscape: Failure Modes and Compounding Hazards

The management of a chemical envelope is a path littered with “Compounding Risks.”

• “The Off-Ratio Failure”: If the chemicals do not mix at the exact 1:1 ratio, the foam may never fully cure, resulting in a persistent “fishy” or “chemical” odor that can render a home uninhabitable.

• “The Thermal Bypass”: Failing to foam the “rim joists” or “cantilevers.” In a house that is 90% sealed, the remaining 10% of leaks become “high-pressure jets” of air that can cause catastrophic condensation.

• “The Substrate Delamination”: Spraying foam onto dusty or frosty surfaces. The foam will initially look perfect but will pull away from the wall over time, creating a hidden air gap.

Governance, Maintenance, and Long-Term Adaptation

An SPF sanctuary is a “High-Precision Instrument” that requires a documented “Operational Protocol.”

• The “Vapor Profile” Monitoring: In homes with closed-cell SPF, the wall cannot dry “through” the foam. Governance requires monitoring interior humidity to ensure it stays between 35% and 55%.

• The “Mechanical Governance” Cycle: ERV filters in SPF homes are the only source of fresh air; they must be changed every 3 to 6 months. Failure to do so leads to CO2 buildup and lethargy.

• Governance Checklist:

  • [ ] Verify HVAC “Dehumidification Mode” is active in summer.

  • [ ] Inspect attic foam for “shadowing” or signs of roof leaks.

  • [ ] Quarterly ERV filter audit and core cleaning.

  • [ ] Annual review of energy monitoring data to identify “Baseload Creep.”

Measurement, Tracking, and Empirical Evaluation

• Leading Indicators: The “ACH50” score. A home with the best spray foam insulation plans should target 1.5 or lower; Passive House targets 0.6.

• Lagging Indicators: Total energy consumption in kWh, adjusted for “Heating Degree Days.”

• Qualitative Signals: The “Mean Radiant Temperature” (MRT). A successful SPF application ensures that the interior wall temperature is within 2 degrees of the air temperature.

• Documentation Example: An “Application Log” provided by the contractor, showing chemical lot numbers, ambient temperatures, and substrate moisture readings for every room.

Common Misconceptions and Oversimplifications

• Myth: “Spray foam is toxic.” Correction: Once cured, SPF is an inert plastic. Toxicity is a risk during the 24-hour application window, which is why professional plans mandate high-CFM ventilation and re-occupancy delays.

• Myth: “You don’t need a vapor barrier with open-cell foam.” Correction: In cold climates, open-cell foam requires a “Vapor Retardant Coating” to prevent interior moisture from migrating into the roof deck.

• Myth: “Spray foam stops roof leaks.” Correction: Spray foam can actually “hide” a roof leak until it has caused significant damage. Professional plans specify the use of “Moisture Sensors” in critical areas.

• Myth: “The house will be ‘too tight’.” Correction: A house can never be too tight, but it can be “under-ventilated.” The tight envelope allows for precision control over the air you breathe.

• Myth: “It’s a fire hazard.” Correction: Modern SPF contains flame retardants and must be covered with a “Thermal Barrier” (like half-inch drywall) to meet building codes.

• Myth: “I can do this myself with a kit.” Correction: DIY kits lack the temperature control and high-pressure mixing of professional rigs, often leading to off-ratio foam and poor adhesion.

Ethical, Practical, or Contextual Considerations

The pursuit of the best spray foam insulation plans is also an ethical calculation of “Resilience.” In an era of increasing grid volatility, an SPF-insulated home acts as a “Thermal Battery.” During a winter power outage, these homes can maintain habitable temperatures for days longer than standard builds. Furthermore, the shift toward HFO-blown foams represents a commitment to reducing the “Embodied Carbon” of the building, ensuring that the energy saved over 50 years is not offset by the chemical footprint of the installation.

Synthesis: The Future of the Chemical Envelope

The trajectory of the American building industry is moving toward “Envelope Autonomy.” We are seeing the rise of “Bio-Based” spray foams derived from soy or castor beans and the integration of Phase Change Materials (PCMs) into the foam matrix. However, the core of this experience remains the building science. No amount of advanced chemistry can compensate for a lack of forensic planning or poor site prep.

To successfully manage a modern thermal environment is to embrace the “Physics of Permanence.” It is a rejection of the disposable construction culture in favor of a legacy-based approach where the structure itself provides the logic for comfort. By prioritizing “Passive Intelligence”—where the materials themselves handle the heat—the builder ensures that the residence remains a sanctuary for a century, rather than a high-tech experiment that expires in a decade.
