Best Blown In Cellulose Plans: A Forensic Architectural Guide

The North American residential building sector is currently navigating a quiet but significant pivot away from high-embodied-carbon synthetic foams toward plant-based, circular-economy aggregates. Best Blown In Cellulose Plans. Within this shift, cellulose—a medium composed of roughly 85% recycled post-consumer paper fiber—has emerged as a foundational element of high-performance architecture. Unlike traditional fiberglass batts, which are often prone to installation gaps, or spray foams, which introduce complex chemical off-gassing protocols, blown-in cellulose provides a monolithic thermal blanket that naturally conforms to the erratic geometries of a construction site. It is a material that functions through the management of entrapped air, utilizing the natural cellular structure of wood fibers to disrupt heat transfer.

However, the efficacy of cellulose is not found in the material alone, but in the forensic precision of its density. In the professional editorial sphere, a successful application is defined by the “settle-proof” mandate. This complexity necessitates a departure from standard contractor “quotes” toward deeply researched, site-specific strategies. To implement an effective thermal sanctuary, one must understand the interaction between hygroscopic buffering—the ability of the fiber to manage moisture—and the rigorous air-sealing prep work that must precede the blower hose.

This study provides a definitive framework for navigating the landscape of sophisticated environmental control via cellulose. We move beyond surface-level energy efficiency tropes to analyze the systemic drivers of performance—from the mitigation of “convective looping” in attics to the role of borate treatments in pest and fire resistance. By dismantling the mechanics of fiber-to-substrate friction and density-per-cubic-foot calculations, we establish a methodology for the architectural stewardship of the home. This is an examination of the residence as a high-performance vessel, engineered to provide a stable, resilient sanctuary through the intelligent application of refined paper fiber.

Understanding “best blown in cellulose plans”

In the professional architectural and building forensic spheres, the mandate to develop the best blown in cellulose plans is regarded as an exercise in “Volumetric Calibration.” It is a multi-perspective challenge that requires the specifier to reconcile the laboratory-rated R-value with the physics of settlement. A common misunderstanding among observers is that cellulose is a “set-and-forget” material. For example, an attic plan requires a calculation of “Initial vs. Settled Depth,” while a wall plan requires a “Dense-Pack” pressure of at least 3.5 pounds per cubic foot to ensure the material remains friction-fit for the life of the structure.

Oversimplification risks are highest when a project focuses solely on R-value per inch. While cellulose provides a respectable R-3.2 to R-3.8 per inch, its true value lies in its superior air-occlusion properties. Unlike fiberglass, which is essentially an air filter, the irregular, fuzzy fibers of cellulose interlock to create a barrier that significantly reduces convective air movement. Effectively determining the best blown in cellulose plans for a specific project requires a calculation of “Thermal Continuity.” This involves identifying “Thermal Bridges”—like the wood studs themselves—and determining if a “Continuous Insulation” layer of exterior wood fiber board is necessary to augment the interior cellulose fill.

Furthermore, a sophisticated approach must address the “Hygroscopic Pulse” of the home. Cellulose is a biophilic material; it can absorb and release moisture without losing its thermal integrity, acting as a humidity buffer for the interior atmosphere. Achieving this level of performance requires a shift from component-based thinking to system-based thinking. The “best” plan is one that recognizes cellulose not just as a filler, but as a component of a “Vapor-Open” assembly that allows the house to dry out if moisture ever enters the wall.

Systemic Evolution: From Newspaper Shavings to High-Density Fiber

The history of cellulose insulation is a transition from primitive waste-resource utilization to precision chemical engineering. In the early 20th century, cellulose was often literally shredded newspaper, frequently untreated and posing a significant fire risk. The First Age (Pre-1970s) was defined by these safety inconsistencies. However, the energy crisis of the 1970s catalyzed the Second Age: the age of “Mineral-Stabilized Fiber.” This era saw the introduction of rigorous federal standards (CPSC) for fire retardancy, utilizing ammonium sulfate or borates to ensure the material was not only non-combustible but actually acted as a fire stop.

The Third Age—the one we currently occupy—is the Age of “Forensic Application.” We have moved beyond simple “bag counts” to digital flow-meters and infrared-verified density.

Conceptual Frameworks and Mental Models

To evaluate cellulose systems with editorial and technical rigor, professionals utilize specific mental models:

• The “Friction-Fit” Model: This posits that in a vertical wall, the insulation must be packed so tightly that the internal friction against the studs outweighs the force of gravity. If the density is too low, the material slumps, creating a “thermal hole” at the top of the wall.

• The “Convective Loop” Framework: This explains why attic insulation must be continuous. If there are gaps at the “eaves” or around “can lights,” warm air will rise through the insulation, creating a loop that strips heat from the house regardless of how much insulation is present.

• The “Borate-Saturation” Logic: This treats the insulation as a chemical barrier. By saturating the fibers with boric acid, the material becomes toxic to insects and mold while remaining safe for humans. It turns the entire wall cavity into an inhospitable environment for pests.

• The “Airtightness Plane” Alignment: This model asserts that cellulose is most effective when the “Pressure Boundary” (the air seal) is perfectly aligned with the “Thermal Boundary.” Cellulose “augments” the air seal, but it does not replace it.

Key Categories: Loose-Fill, Dense-Pack, and Stabilized Variations

When practitioners evaluate the best blown in cellulose plans, they typically segment the market based on the mechanical delivery method and the moisture-content profile.

Comparative Taxonomy of Cellulose Systems

Category	Density (lbs/ft³)	Typical R-Value	Primary Use Case	Primary Trade-off
Loose-Fill	1.2 – 1.6	R-3.7/inch	Vented Attics	Susceptible to wind-wash
Dense-Pack	3.5 – 4.0	R-3.4/inch	Closed Walls / Joists	High labor/equipment cost
Wet-Spray	2.5 – 3.2	R-3.6/inch	New Construction Walls	Requires drying time (48h)
Stabilized	1.5 – 1.8	R-3.8/inch	Sloped Ceilings	Requires adhesive additives
Boric-Only	Variable	R-3.7/inch	High-end / Low-Odor	Higher material premium

Realistic Decision Logic

The decision to utilize a specific category is often a function of “Assembly Access.” In a new construction project where the studs are exposed, Wet-Spray (Moisture-Added) Cellulose is often the gold standard. It is sprayed into the open cavity and “scraped” flush, providing a visual guarantee of a perfect, gap-free fill. Conversely, in a retrofit of a 1920s craftsman, the logic favors Dense-Pack Cellulose. The material is blown behind the existing plaster at high pressure, which has the secondary benefit of tightening the structural rigidity of the historic wall.

Detailed Real-World Scenarios and Decision Logic Best Blown In Cellulose Plans

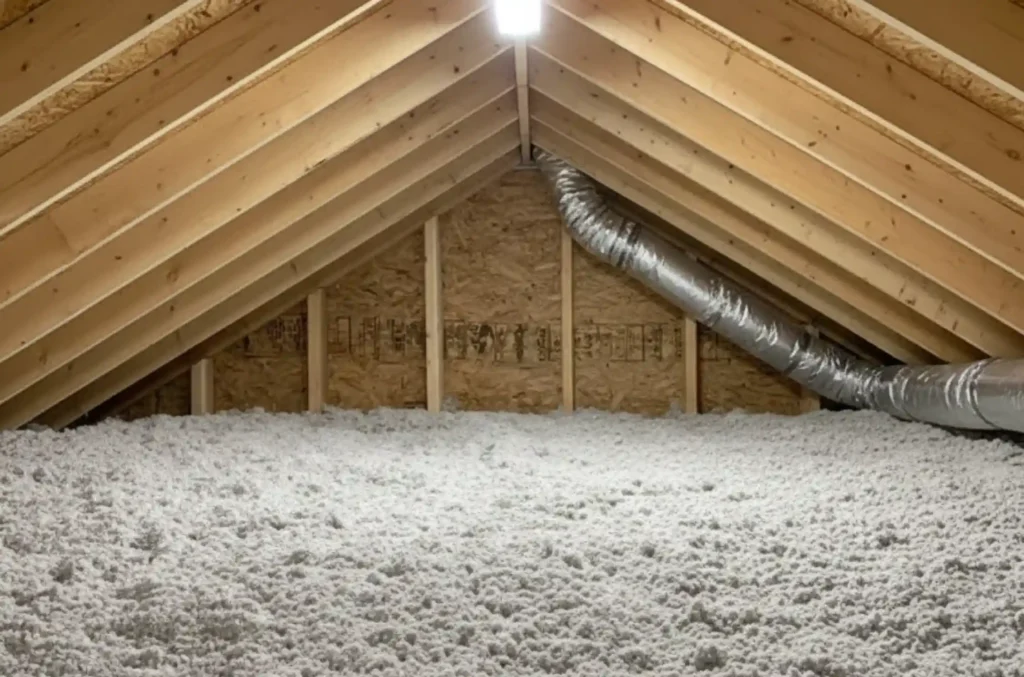

The Vented Attic (Upper Midwest)

• The Challenge: Extreme “Stack Effect” where warm air escapes through the ceiling, causing ice dams on the roof.

• The Strategy: A “Hybrid Air-Seal” followed by 18 inches of loose-fill cellulose (R-60).

• The Logic: Before blowing the cellulose, every wire and plumbing penetration is sealed with two-component foam. The cellulose is then blown at a high enough initial depth to account for a 10% settlement over time, ensuring the R-value remains stable for decades.

The Historic Brick Retrofit (Northeast)

• The Challenge: Insulating the interior of a brick wall without causing the brick to freeze and spall (break apart).

• The Strategy: A “Vapor-Open” dense-pack plan using borate-only cellulose.

• The Logic: Borate-only cellulose is less corrosive to the old mortar. By dense-packing the cavity, we reduce air movement against the cold brick, but the vapor-open nature of cellulose allows the brick to dry toward the interior during the summer.

The Modernist Cantilever (Coastal West)

• The Challenge: Floors that “hang” over the exterior are notoriously cold due to air infiltration.

• The Strategy: “Net-and-Blow” dense-pack cellulose at 4.0 lbs density.

• The Logic: A fabric mesh is stapled across the joists, and cellulose is blown in until it is hard to the touch. This density is high enough to stop the “wind-washing” from the ocean breeze that typically renders fiberglass batts useless in cantilevers.

Planning, Cost Architecture, and Resource Dynamics

The economic profile of cellulose is defined by the “Material-to-Labor Ratio.” The raw material is relatively inexpensive, but the labor required for proper “Dense-Packing” is intensive.

Range-Based Resource Allocation (Per 1,500 Sq. Ft. Attic @ R-49)

Component	DIY Grade	Professional Grade	Forensic “Best” Plan
Insulation Material	$1,200	$1,500	$2,000 (Boric-Only)
Blower Rental/Labor	$100 (Rental)	$1,200 (Labor)	$2,500 (Expert Crew)
Air Sealing Prep	$50 (Caulk)	$400 (Pro Seal)	$1,500 (Deep Detail)
Diagnostic (IR/Blower)	$0	$250	$750
Total (Est.)	$1,350	$3,350	$6,750

The Opportunity Cost: The most expensive mistake is skipping the air-sealing phase. Blown-in insulation is not an air barrier. If you blow $5,000 of cellulose over unsealed gaps, the “Effective R-Value” can drop by as much as 30% due to convective bypass. The best blown in cellulose plans always allocate at least 25% of the budget to the “Pressure Boundary” before the first bag is opened.

Tools, Strategies, and Support Systems

Executing a high-end cellulose vision requires a move from the rake and shovel to “Precision Pneumatics”:

1. High-Output Blowers: Professional-grade machines (like those from Krendl or Accu1) that can maintain the “Back-Pressure” necessary for dense-packing.

2. Infrared Thermography: The only way to verify that a dense-packed wall is truly full without stripping the drywall.

3. Baffle Management: Recycled cardboard or plastic baffles that ensure attic ventilation is not blocked by the insulation.

4. Hose Management: Utilizing a “reducer” at the end of the hose to increase the velocity of the fibers for better interlocking.

5. Moisture Meters: Critical for “Wet-Spray” applications; the wall must be below 15% moisture content before it is “closed” with drywall.

6. Density Testing Kits: A volumetric box used to weigh a sample of the blow to ensure the target lbs/ft³ is being achieved.

7. Smart Vapor Retarders: In cold climates, a smart membrane is used on the interior to keep winter humidity out of the cellulose while allowing summer drying.

Risk Landscape: Failure Modes and Compounding Hazards

Cellulose is a “Robust” material, but it is not immune to the laws of physics.

• “The Slump Effect”: Applying loose-fill density into a vertical wall. Gravity will eventually create a 6-to-12 inch gap at the top of the wall, which acts as a “chimney” for heat loss.

• “The Moisture Trap”: Using a “Vapor-Closed” barrier (like 6-mil poly) on the wrong side of the wall. This can trap moisture in the cellulose, leading to a loss of R-value and potential mold growth.

• “Corrosion Compounding”: Using “Sulfate-Treated” cellulose in contact with metal pipes or fasteners in a damp environment. The sulfates can react with moisture to form sulfuric acid, which corrodes metal. (Boric-only plans mitigate this).

• “The Dust Intrusion”: Failing to seal the “Can Lights” or attic hatches, allowing fine cellulose dust to enter the living space during the blow.

Governance, Maintenance, and Long-Term Adaptation

A cellulose envelope is a “Living Asset” that requires periodic verification.

• The “Settlement Audit”: For loose-fill attics, the depth should be checked every 5 years. While modern cellulose is “settle-proof” in walls, attic fill can compress slightly under its own weight or due to foot traffic from tradespeople.

• The “Wind-Wash” Inspection: In vented attics, high-velocity winds can “blow” cellulose away from the eaves. Governance requires checking the perimeter every few years to ensure the “Thermal Bridge” at the top plate is still covered.

• Governance Checklist:

  • [ ] Inspect attic baffles for clear airflow.

  • [ ] Verify the “Settle-Line” on the attic rulers.

  • [ ] Audit electrical boxes for “dust tracking” (a sign of air leaks).

  • [ ] Check for “Tunnelling” from rodents (borate-treated cellulose usually prevents this).

Measurement, Tracking, and Evaluation

• Leading Indicators: The “Bag Count” verification. Manufacturers provide a chart showing how many bags are required for a specific R-value/Sqft. If the crew uses fewer bags, the density is too low.

• Lagging Indicators: Normalized energy bills (heating degree day adjusted).

• Qualitative Signals: The “Acoustic Floor.” A successful cellulose application significantly reduces exterior noise; if the house still feels “loud,” there are likely voids in the fill.

• Documentation Example: A “Density Log” showing the weight of the material used per room, verified against the volume of the cavities.

Common Misconceptions and Oversimplifications

• Myth: “Cellulose is a fire hazard because it’s paper.” Correction: Borate-treated cellulose is a Class A fire-rated material. In tests, it often outlasts fiberglass because it blocks the air that fire needs to spread.

• Myth: “It will settle and leave gaps.” Correction: Only if installed at the wrong density. Professional “Dense-Pack” is under such pressure that it cannot settle.

• Myth: “Fiberglass is better because it doesn’t hold water.” Correction: Fiberglass allows water to run through it, often hiding leaks until the wood rots. Cellulose absorbs moisture and redistributes it, which can actually help a wall dry out.

• Myth: “It’s too dusty for my home.” Correction: Modern “Low-Dust” formulations and proper masking during the blow make the process quite clean.

• Myth: “I can just rent a blower and do it myself.” Correction: DIY machines usually cannot reach the pressures required for “Dense-Packing” walls. They are only suitable for attic “Loose-Fill.”

• Myth: “It smells like old newspapers.” Correction: Higher-end “Boric-Only” cellulose is almost entirely odorless.

Ethical, Practical, and Contextual Considerations

The move to specify the best blown in cellulose plans is fundamentally an ethical choice regarding “Embodied Carbon.” As the building industry moves toward “Net Zero” operational energy, the carbon cost of the materials themselves becomes the new frontier. Cellulose is unique in that it is a “Double-Positive” material: it diverts waste from landfills and acts as a carbon sink for the life of the building. Furthermore, the “Circular” nature of the product—recycled paper made from trees—aligns with the growing demand for biophilic, non-toxic building materials that do not rely on the petroleum industry.

Synthesis: The Future of the Fibrous Boundary

The trajectory of the American building industry is moving toward “Carbon-Negative Precision.” We are seeing the rise of “Wood Fiber” batts and “Hemp-Lime” aggregates, but cellulose remains the most cost-effective and scalable plant-based solution available today. The future of the material lies in “Automated Injection,” where CAD-driven machines blow cellulose into factory-built wall panels with 100% density accuracy.

To successfully navigate the environmental requirements of the 21st century is to treat cellulose with the respect of a high-performance material. It is a rejection of the “commodity” mindset in favor of a forensic approach where the installation is as important as the R-value. By prioritizing the “Friction-Fit” and the “Borate-Saturation,” the builder ensures that the residence remains a stable, filtered, and resilient sanctuary for the life of the asset.
